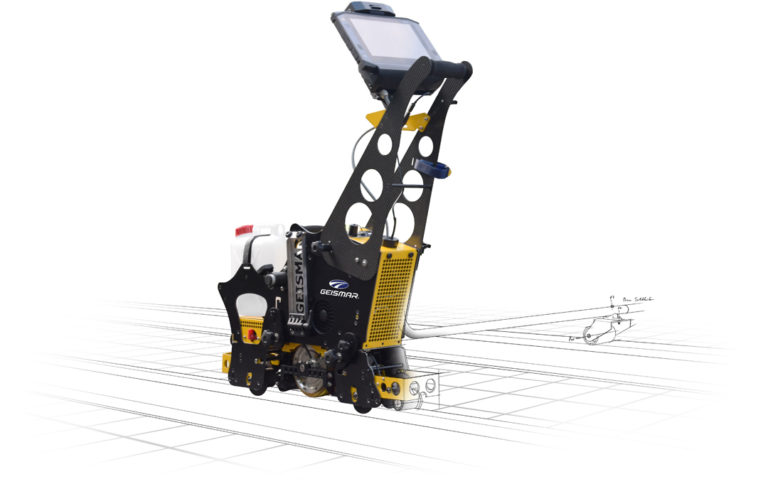

ONYX-US17 TROLLEY FOR ULTRASONIC INVESTIGATION OF RAIL DEFECTS

  • The ONYX-US17 enables a single operator to carry out continuous ultrasonic inspection with a small, lightweight trolley
  • Like all of our Ultrasonic Rail flaw detectors, the ONYX-US17 is available with a choice of Ski type probes having 9 transducers monitored by 12 channels per rail or a wheel probe containing 11 transducers monitored by 14 channels per rail
  • A dedicated, rugged tablet computer with touchscreen, ergonomically mounted on the trolley shows the collected data in real time or can be played back for verification
  • Our comprehensive off-line analysis software allows archivig and later analysis of all tests at any time after inspection
Category:
  • Gauge Any one (1) of any gauges
    Type of probes Sliding or wheel probes
    Testing speed 7 km/h 4 mph
    Analysis type A-scan & B-scan testing
    Number of rails being tested simultaneously ONYX-US17: one
    ONYX-US27: two
    Autonomy > 8 hours
    Number of probes 9 per rail

    Technical details are for information only

Brochure ONYX-US17

Download
